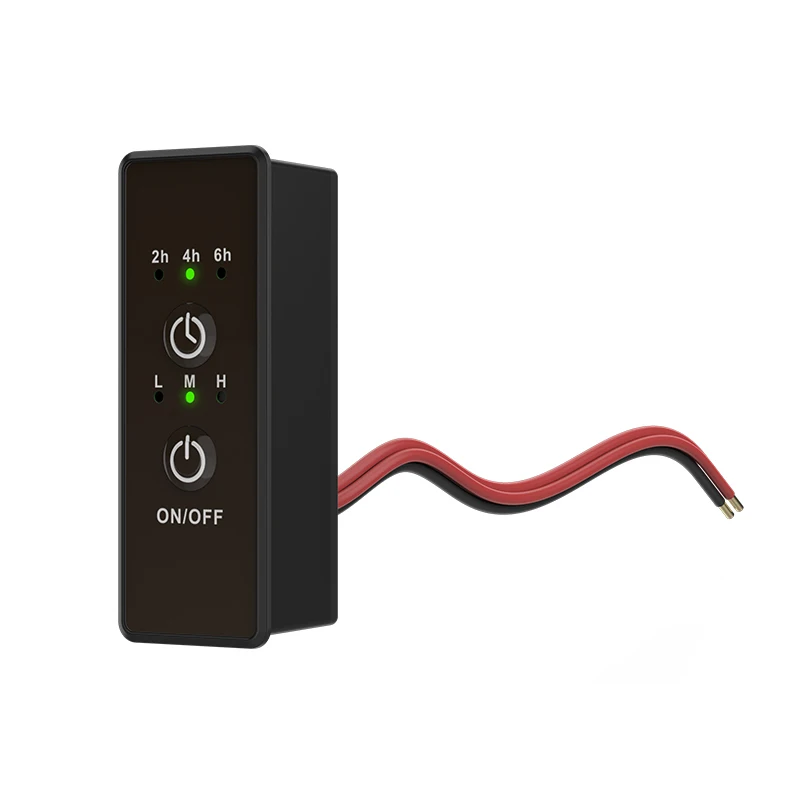

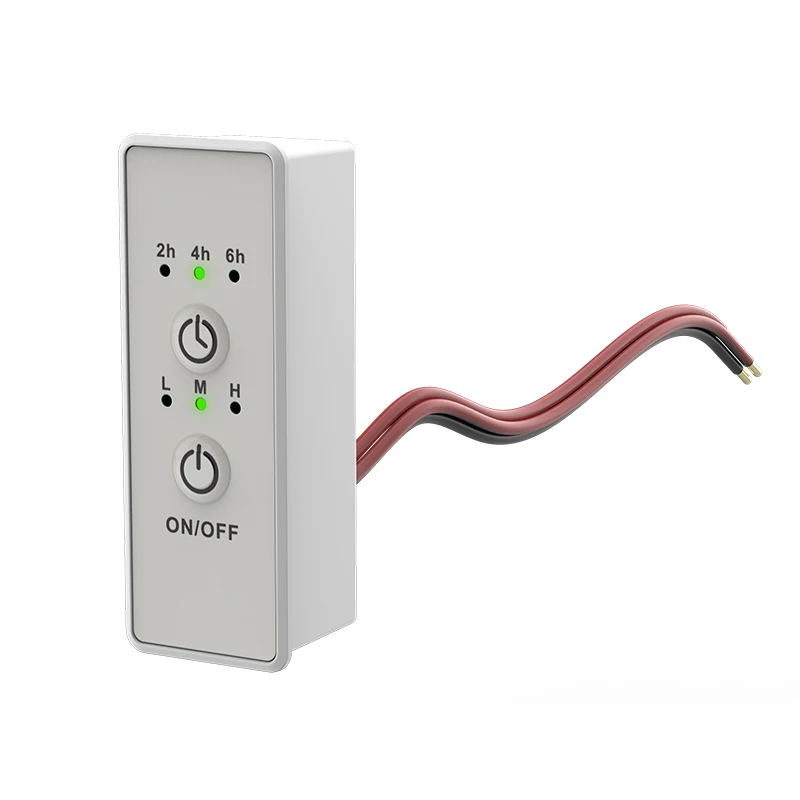

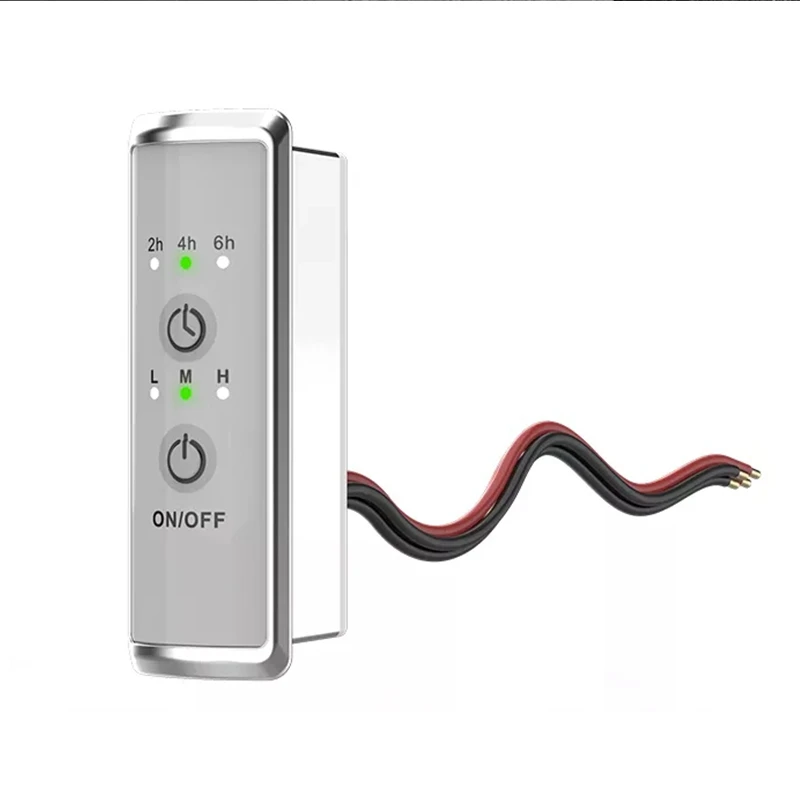

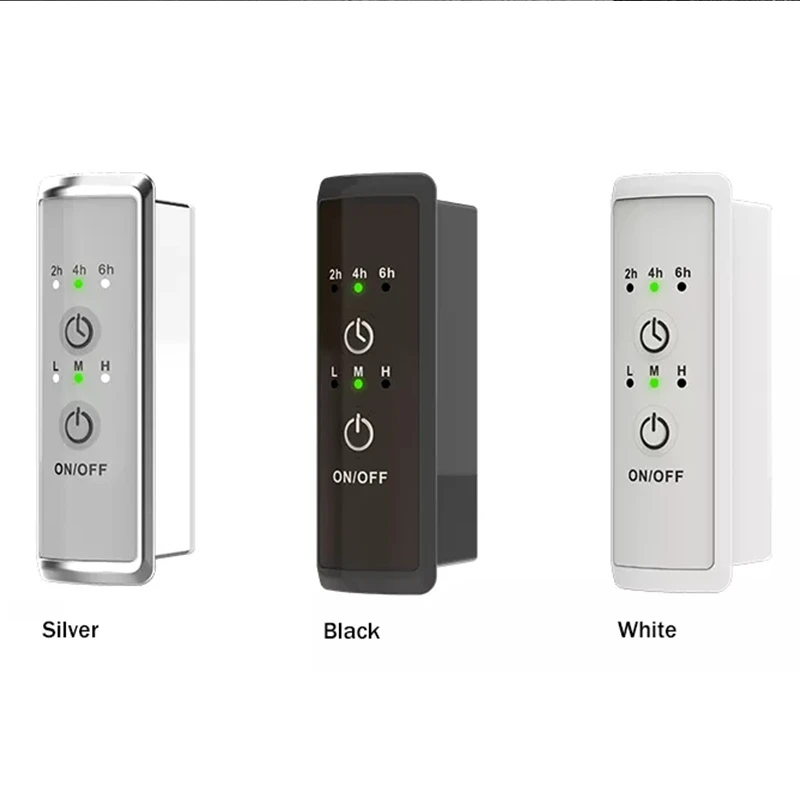

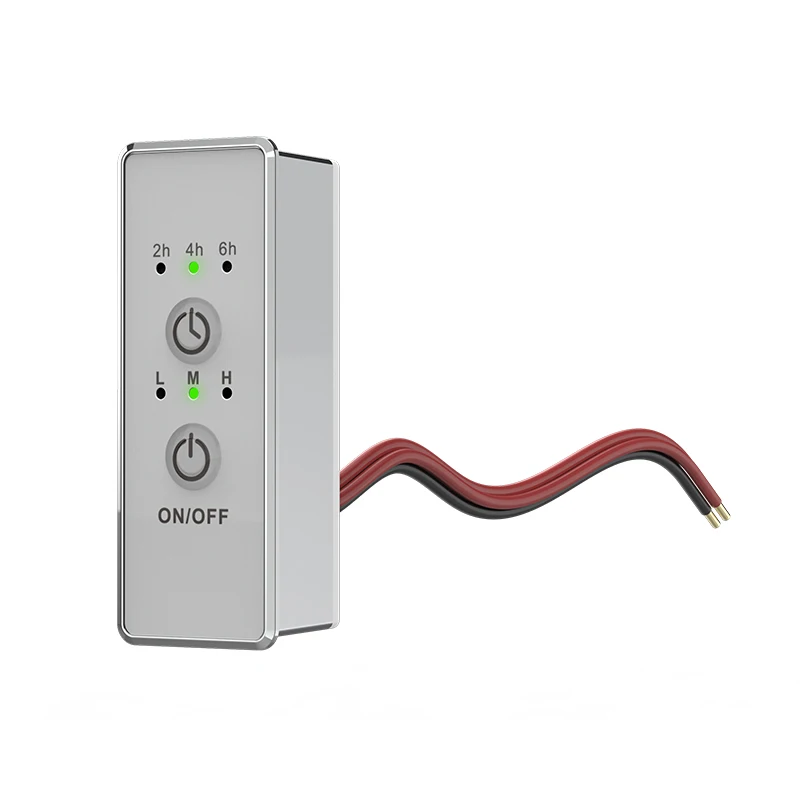

Bathroom Towel Rack Heating Time Controller, Electric Dry Towel Rack Rod Thermostat Embedded Timer Black/White/Silver

$21.67

Category:

Description

Bathroom Towel Rack Heating Time Controller, Electric Dry Towel Rack Rod Thermostat Embedded Timer Black/White/Silver
Price: 8.33 - 21.67

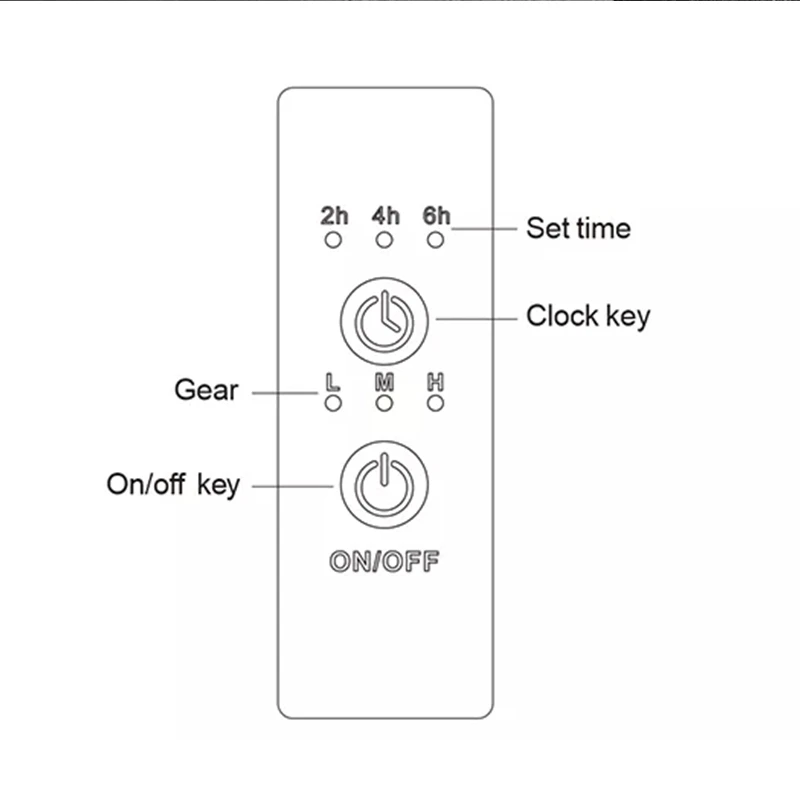

Working principle:

When you turn the product on the power network, the LEDs do not burn (standby mode).
The product is included in the power network, without choosing the mode of operation ("off"-the product does not heat up, power 0%)
On/off the product is done by pressing and holding the button for 3 seconds. After that, the 1st led (mode I) will light-the product is heated at 60% power.
To change the operating mode (power), you need to press the button without holding.

Each subsequent Press changes the heating mode: I-II-III-OFF.

Mode II (burn 1st and 2nd LEDs)-the product is heated at 80% power
Mode III (three LEDs are burning)-the product is heated at 100% power


To select the necessary working time of the product, you need to press the button.
Each press of the button will set the disable timer on the desired time line.
According to the selected time, the corresponding led will light up:
Shutting off after 2 hours-LED lights,
Power off after 4 hours-LED lights,
Turning off after 6 hours-the LED lights up.
If no diode Burns, the product works in constant mode.
The product is turned off by pressing and holding the button for 3 seconds.


When the current is cut off and re-turned on, the work of the product passes
In "standby" mode (the product does not heat up, power 0%., the timer is not set,LEDs do not burn).


Backlight diodes (green)
Voltage-230 V ± 10%
Adjustable power-up to 150 W

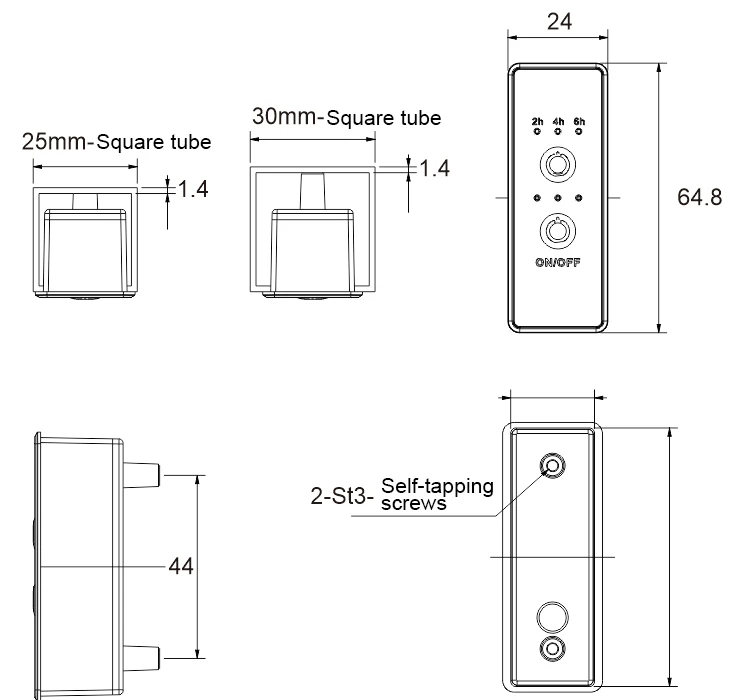

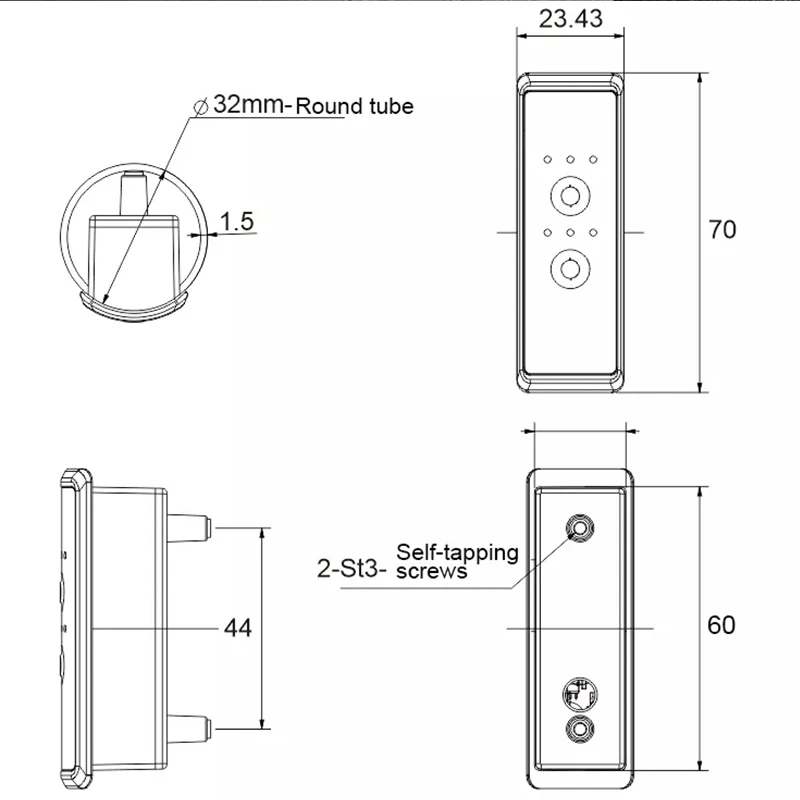

Mounting the regulator body to the towel-rail pipe-6 latches along the perimeter. Mounting the board to the housing-2 self-nuts.
The regulator meets the requirements of the EMC regulations (electromagnetic compatibility)
Overall dimensions of the regulator body: height (H) not more than 23mm x width (W) not more than 20mm x length (D) not more than 61mm
